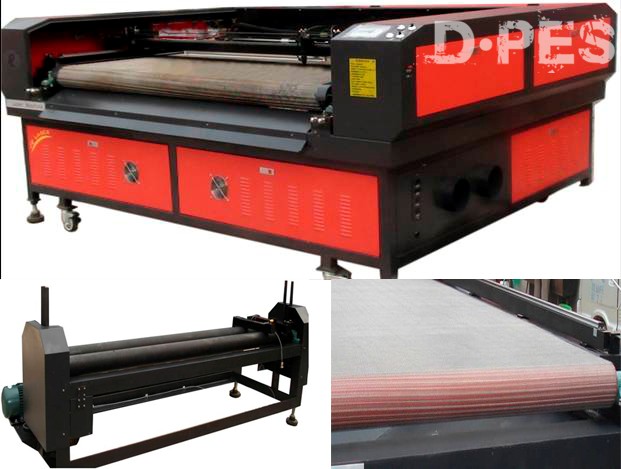

garment industry layout/cloth/fabric co2 glass tube laser cutting machine
garment industry
fabric laser cutting machine
1'paper lazer cutting machine
2'sticker
cutting machine
3'garment factory
Performance Features
1.Configure higher power laser tube.
2.DSP controlling system,
rich functions, can effect engraving on plane, gradient engraving by 360 degree,
cutting and drilling holes etc.
3.Owns functions of restoring from power off,
continuation on break point.
4.Transmit files directly in CorelDraw, AutoCAD
etc.
5.Adopt international linear rail, more precision.
Techincal Parameter
|
Item / Model
|

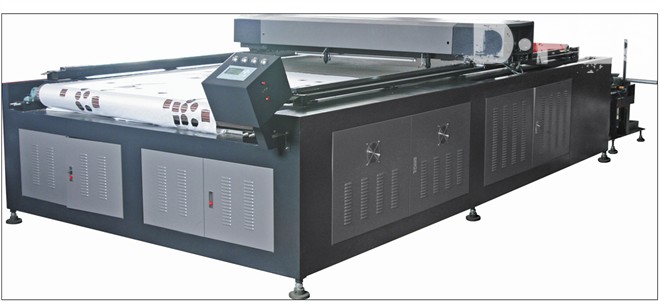

JQ-1325 laser cutting machine
|
|
Cutting area
|
1300 x 2500mm
|
|
Laser power
|
60w/80w
|
|
Laser type
|
CO2 sealed laser tube,water-cooled,10.6um
|
|
Engraving speed
|
0-6000mm/min
|
|
Laser Output
|
1-100%software setting
|
|
Resetting positioning accuracy
|
≤±0.01mm
|
|
Power supply
|
220V/50HZ, 110V/60HZ
|
|
Operating temperature
|
0 - 45°C
|
|
Operating humidity
|
5 - 95%
|
|
Min. shaping character
|
English 1.0 x 1.0mm
|
|
Graphic format supported
|
BMP, PLT, DST, DXF, AI
|
|
Software supported
|
TAJIMA,CorelDraw, PhotoShop, AutoCAD
|
|
Driving system
|
Stepper or servomotor
|
|
Cooling mode
|
Water-cooling and protection system
|
|
Optional Spare Parts
|
Up-down clump, Rotary System, Honeycomb table
|
|
Recommended Spare Parts
|
Laser Tube and Lens
|
Application Field
Applicable materials: wood, bamboo, organic
glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and
other nonmetal materials.
Applicable industries: advertisement, gift,
shoes, toys, computers, garments, model cutting, building, packaging, paper
industry.
