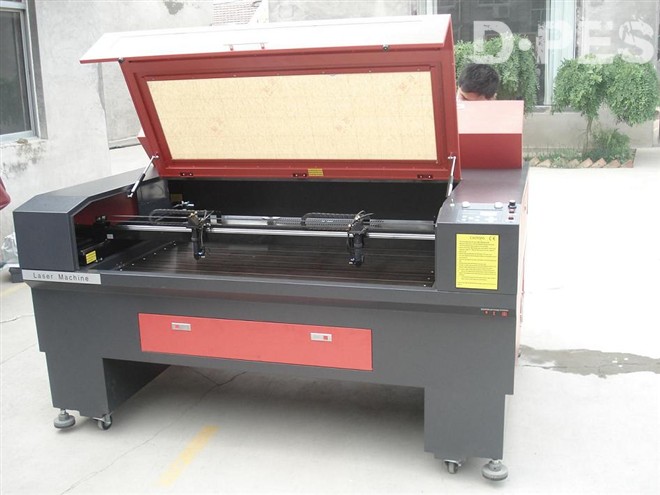

Advertisement Laser Cutting&Engraving Machine with dual heads
Engraving:
Wood, Bamboo, MDF, Plywood, Acrylic, Glass, Marble, Plastic, Ceramic, Delrin, Leather, Granite, Matte Board, Paper, Cardboard, Rubber, Veneer, Cork, Cloth, Fabrics, Jeans, Leather, Denim, Woven, Nonwoven, Carpet, Mat, Rug, Mylar, etc.

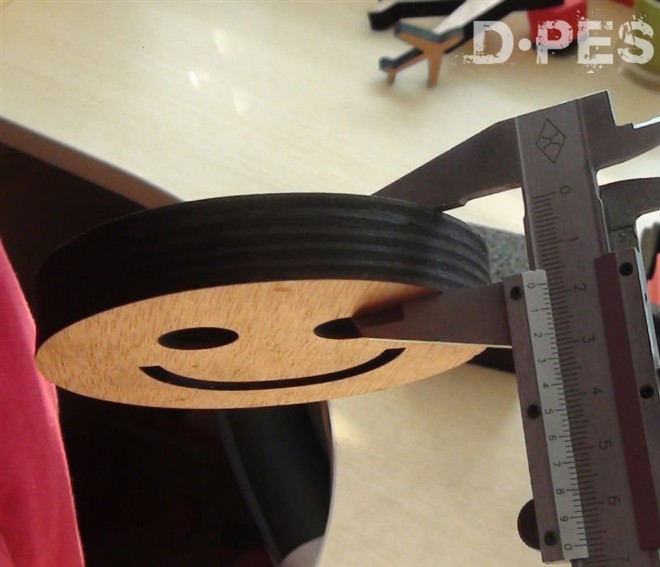

Cutting:
Wood, Balsa, Plywood, Veneer, Acrylic, Plastic, Foam, EVA Sheet, Delrin, Cloth, Fabrics, Jeans, Denim, Leather, Woven, Nonwoven, Carpet, Mat, Rug, Matte Board, Paper, Mylar, Pressboard, Rubber, Cork, etc.
Product advantage:
Software:

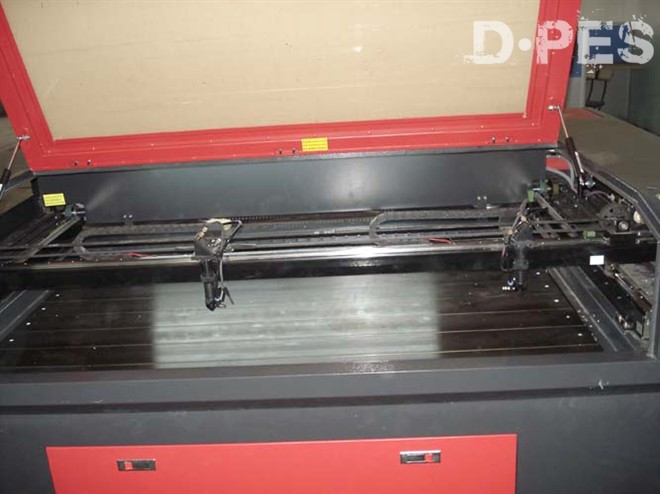

1.Global pioneer for double core laser processing system.
Double sysytem switch perfectly,enhance the working efficiency doubly,prolong the lifetime of laser machine and decrease the machine damage,ensure the stability and timeliness of process
2.Particular ultrasonic auto-focus system.
Thoroughly solved the problem about inaccurate focusing by manual,the working procedure is tedious.It perfectly combines high accuracy focusing with the high quality process material and make the processing more perfect.
3.International leading moving control system.
Working independently without computer connection,or connect the U connection,USB and network communication.Professional and accruate moving system makes engraving and cutting stable with speed and precision.
4.Sealed waste gas suction system and floating suction system can completely discharge waste gas.
5. Advanced and convenient control system.
Hardware:
1.High speed and stable guide selection.
2.Stable and beautiful machine body.
3.High performance predominant focus selection.
4. High performance-cost co2 RF laser tube.
5.Standard spare parts.
6.Safe and durable circuit design.
International Certificate
1. ISO9002
2. ISO9001:2000
3. CE
Product Feature
Honeycomb or fixed aluminous strip working table can be selected, front and back running-through design, suits for engraving and cutting on all kinds of non-metal materials, it has high ratio between the quality and price, widely application.
Application Field
Suitable for double color plate,organic glass,glass,bamboo,paper,rubber,marble,granite,tile,and such non-metal material.
Technical Parameter
|
Laser type
|
CO2 hermetic and detached laser tube
|
|
Laser power
|
60w/100w
|
|
Cutting area
|
900mm*600mm
|
|
Cutting table
|
Zinc honeycomb working table
|
|
No-load maxspeed
|
0-24000mm/min
|
|
Repeating location
|
±0.1mm
|
|
Moving system
|
Offline stepping motor system
|
|
Cooling system
|
Water-cooling and protection system
|
|
Power supply
|
220V±5%/50Hz
|
|
Format support
|
AI,BMP,PLT,DXF,DST etc
|
|
Standard collocation
|
Mini air compressor, 550W up & down exhaust fan
|
|
Select collocation
|
Double core system,constant temperature water-chiller,automatic control high pressure blower valves,strip panel working table,automatic up&dowm working table (JGSH-10060),servo system.
|
