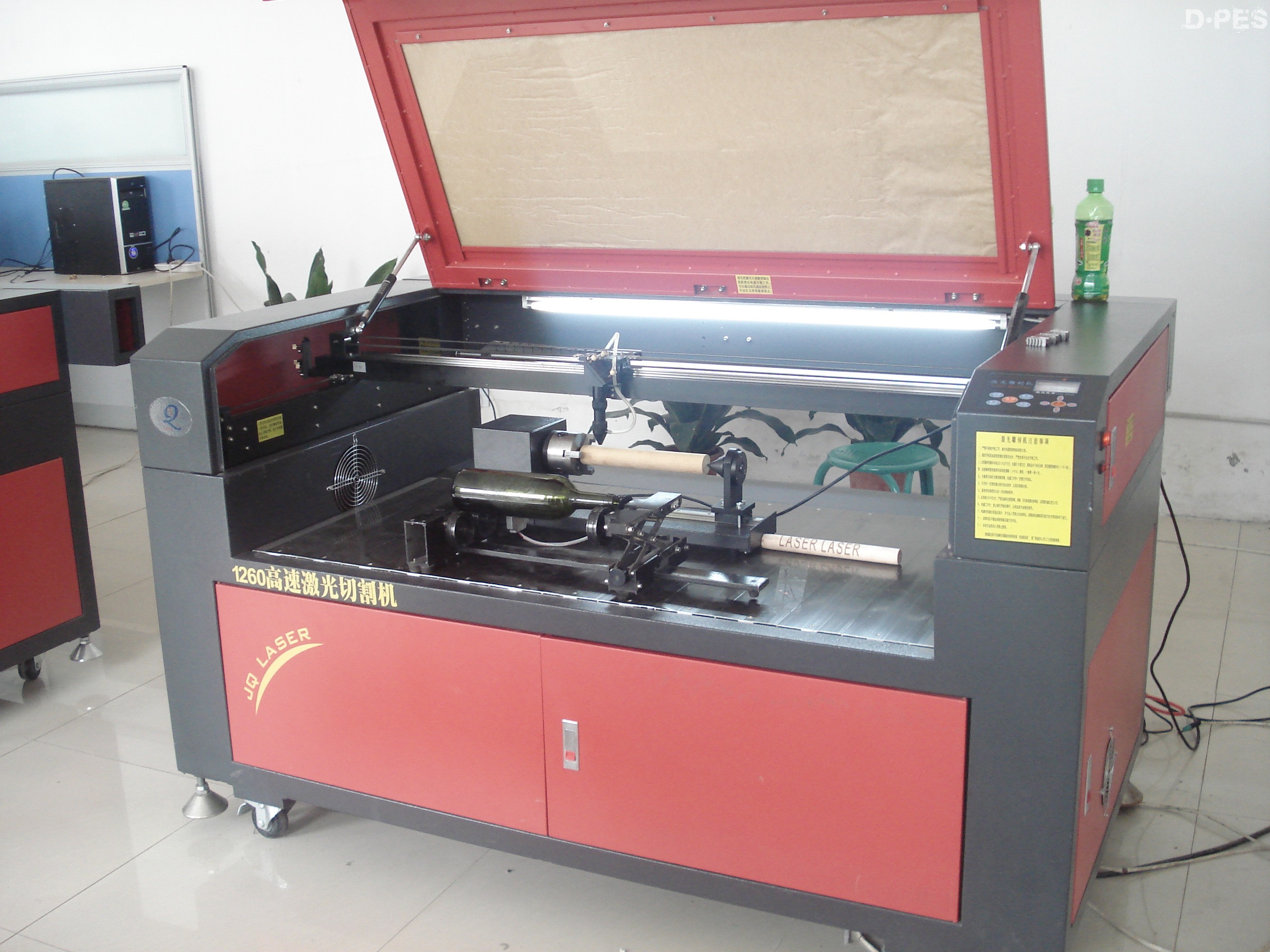

Dual heads Laser Engraving and Cutting Machine-JQ1490
Dual heads Laser Engraving and Cutting Machine
1.dual heads improve work efficiency
2.1.4*0.9m
3.USB control, fast engraving
1.Configure higher power laser tube.
2.DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3.Owns functions of restoring from power off, continuation on break point.
4.Transmit files directly in CorelDraw, AutoCAD etc.
5.Adopt international linear rail, more precision.
Techincal Parameter
|
Item / Model
|
JQ-1490
|
|
Cutting area
|
1400 x900mm
|
|
Laser power
|
80W/60W
|
|
Laser type
|
CO2 sealed laser tube,water-cooled,10.6um
|
|
Engraving speed
|
0-60000mm/min
|
|
Laser Output
|
1-100%software setting
|
|
Resetting positioning accuracy
|
≤±0.01mm
|
|
Power supply
|
220V/50HZ , 110V/60HZ
|
|
Operating temperature
|
0 - 45°C
|
|
Operating humidity
|
5 - 95%
|
|
Min. shaping character
|
English 1.0 x 1.0mm
|
|
Graphic format supported
|
BMP, PLT, DST, DXF, AI
|
|
Software supported
|
TAJIMA,CorelDraw, PhotoShop, AutoCAD
|
|
Driving system
|
2 phases stepper motor
|
|
Cooling mode
|
Water-cooling and protection system
|
|
Equipment Dimensions
|
1450x1100x1070mm
|
|
Net Weight:
|
1000KGS
|
|
Shipping Dimensions
|
1500 x 1110 x 1300mm
|
|
Optional Spare Parts
|
Up-down clump, Rotary System, Honeycomb table
|
|
Recommended Spare Parts
|
Laser Tube and Lens
|
Application Field
Applicable materials: wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
Applicable industries: advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry
