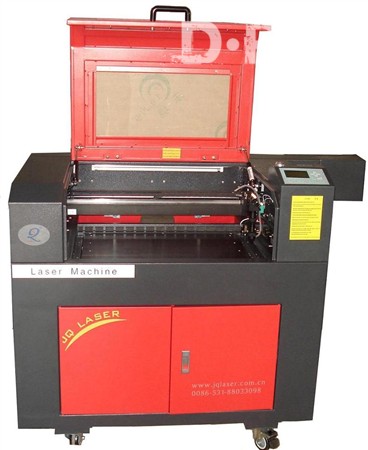

desktop Laser Engraving/Cutting Machine for baby shower-JQ6040
JQ4030 Laser engraving and cutting machine is a simple and useful laser processing device that JQ Laser has specially been developed for the needs of advertising, gift packaging and other relevant industries. The equipment inherits the characteristics of both the former high-speed laser engraving machine and high-speed laser cutting amchine. The device is equipped with the imported dual rails for more stable operation. Its drawer is benefical for the collelction and disposal of waste. The machine can install an up-down platform to make the processing more cvonvenient.
1.Configure higher power laser tube.
2.DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3.Owns functions of restoring from power off, continuation on break point.
4.Transmit files directly in CorelDraw, AutoCAD etc.
5.Adopt international linear rail, more precision. Imported reflector and focus lens, not easy to broken and wear resistant.
|
Laser Engraving Machine Technical Specifications
|
|
Item / Model
|
JQ4030
|
|
Cutting area
|
400x 300mm
|
|
Laser power
|
40w
|
|
Laser type
|
CO2 sealed laser tube,water-cooled,10.6um
|
|
Engraving speed
|
0-60000mm/min
|
|
Laser Output
|
1-100%software setting
|
|
Resetting positioning accuracy
|
≤±0.01mm
|
|
Power supply
|
AC 110 - 220V ± 10%, 50 - 60Hz
|
|
Operating temperature
|
0 - 45°C
|
|
Operating humidity
|
5 - 95%
|
|
Min. shaping character
|
English 1.0mm x 1.0mm
|
|
Graphic format supported
|
BMP, PLT, DST, DXF, AI
|
|
Software supported
|
Tajima,CorelDraw, PhotoShop, AutoCAD
|
|
Driving system
|
Stepper
|
|
Cooling mode
|
Water-cooling and protection system
|
|
Equipment Dimensions
|
720×520×480mm
|
|
Net Weight
|
55kg
|
|
Optional Spare Parts
|
Up-down clump, Rotary System, Honeycomb table
|
|
Recommended Spare Parts
|
Laser Tube and Lens
|
Applicable materials:

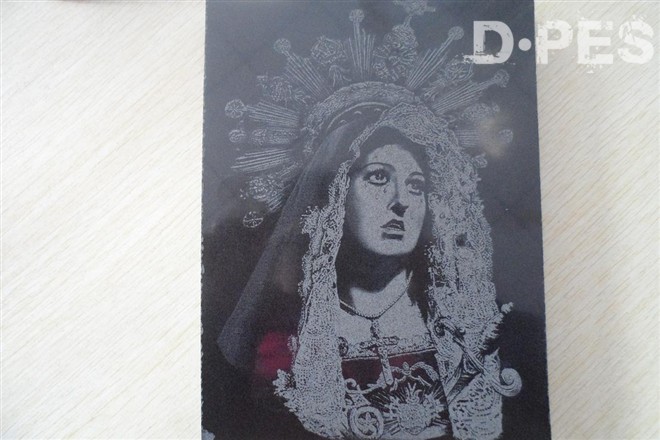

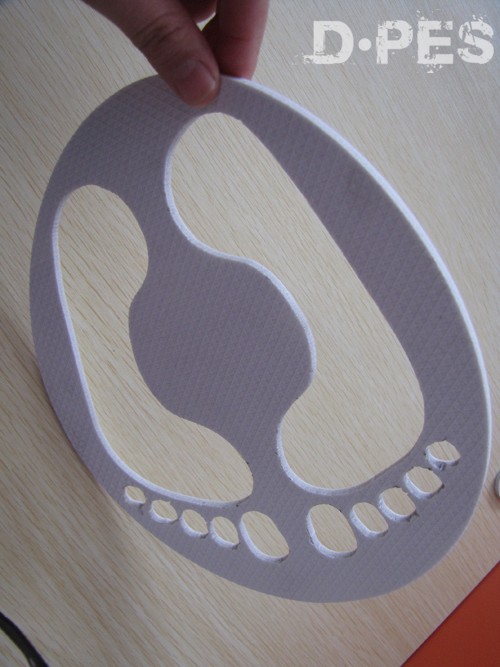

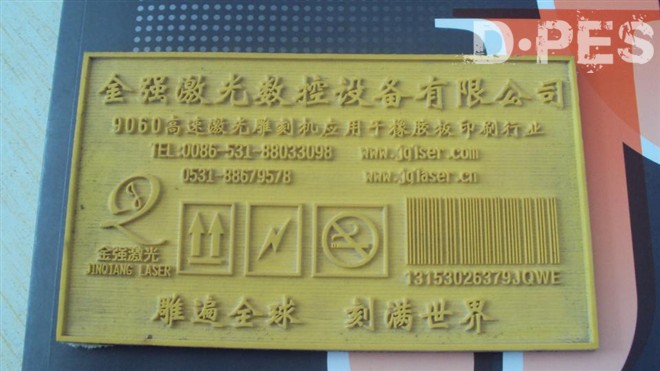

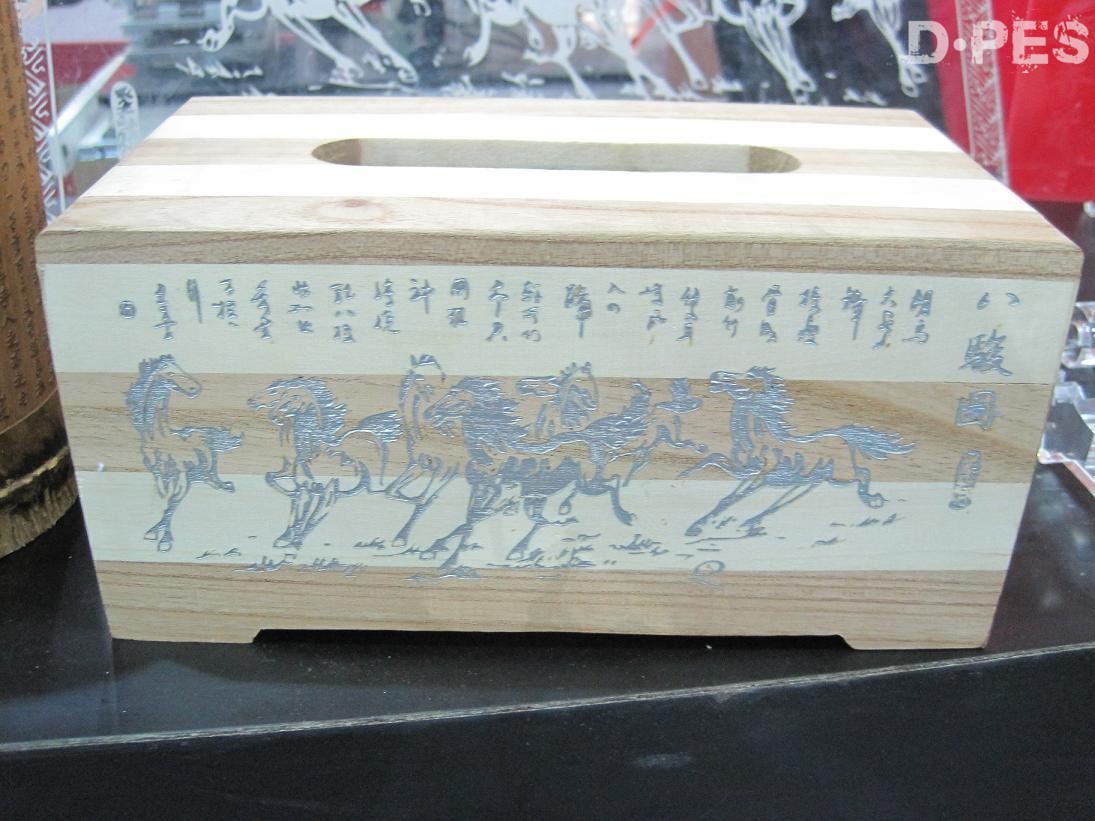

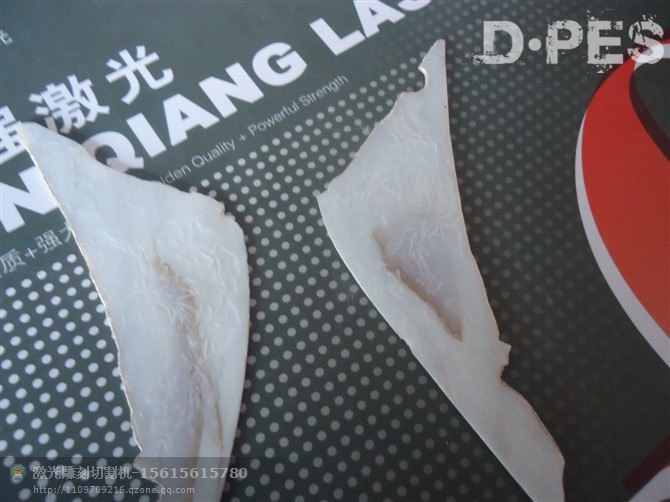

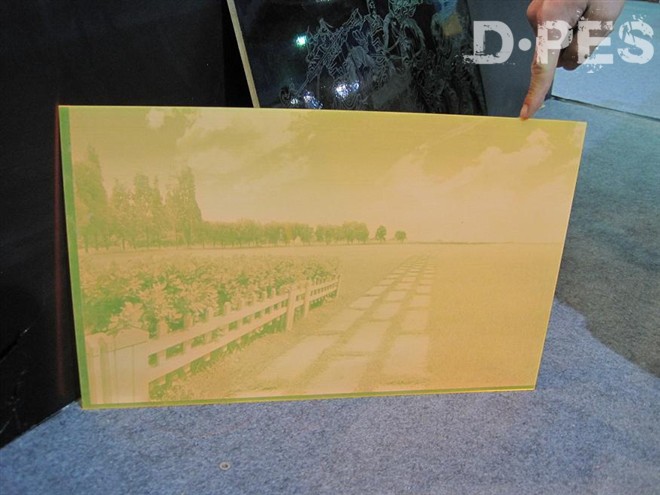

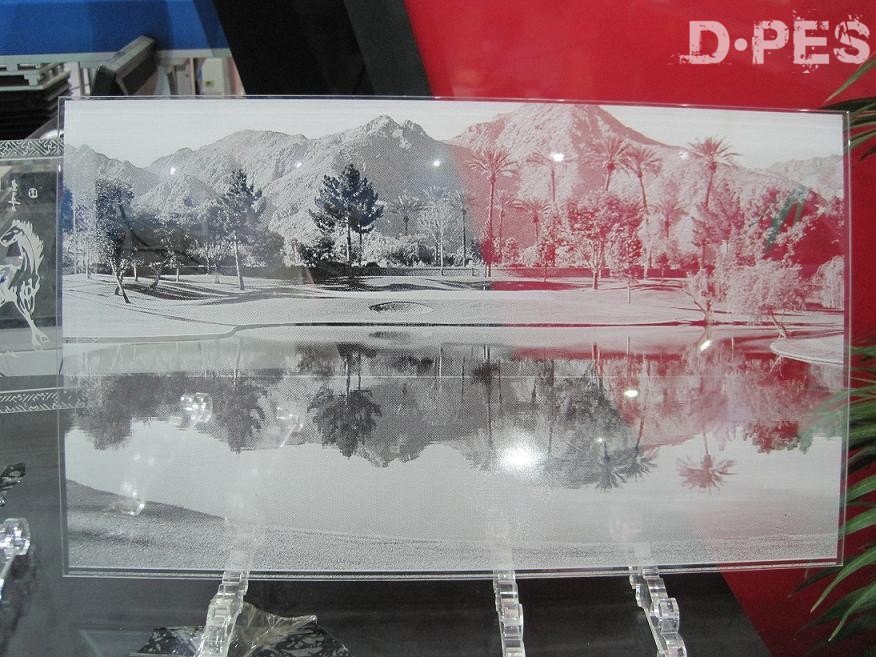

Marble,granite, jeans ,fabric ,acrylic ,MDF, wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other non-metal materials,etc.
Applicable industries:
advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry,etc.
