co2 laser engraving machine JQ6040
Configure higher power laser tube.
DSP controlling system,adopt international linear rail
Techincal Parameter
|
Co2 Laser carving Machine Technical Specifications
|
|
Model
|
JQ6040
|
|
Cutting area
|
600 x 400mm
|
|
Laser power
|
40w/60w
|
|
Laser type
|
CO2 sealed laser tube,water-cooled,10.6um
|
|
Engraving speed
|
0-60000mm/min
|
|
Laser Output
|
1-100%software setting
|
|
Resetting positioning accuracy
|
≤±0.01mm
|
|
Power supply
|
AC 110 - 220V ± 10%, 50 - 60Hz
|
|
Operating temperature
|
0-45C
|
|
Operating humidity
|
5 - 95%
|
|
Min. shaping character
|
English 1.0mm x 1.0mm
|
|
Graphic format supported
|
BMP, PLT, DST, DXF, AI
|
|
Software supported
|
Tajima,CorelDraw, PhotoShop, AutoCAD
|
|
Driving system
|
Stepper motor
|
|
Cooling mode
|
Water-cooling and protection system
|
|

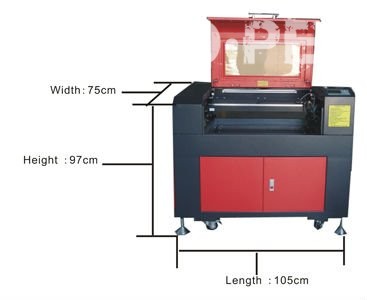

Equipment Dimensions
|
1050×750×970mm
|
|
Net Weight:
|
150kg
|
|
Optional Spare Parts
|
Up-down clump, Rotary System, Honeycomb table
|
|
Recommended Spare Parts
|
Laser Tube and Lens
|

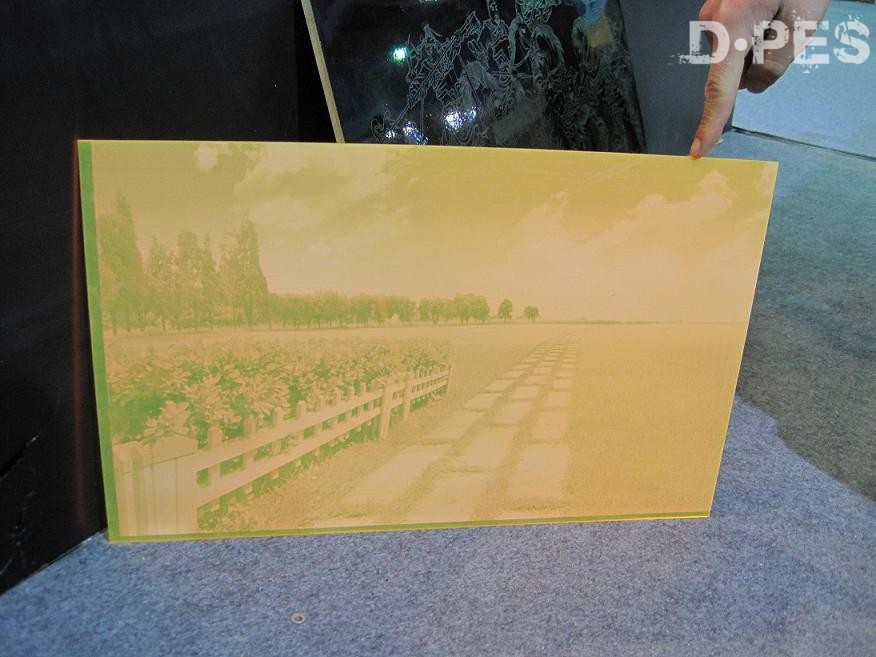

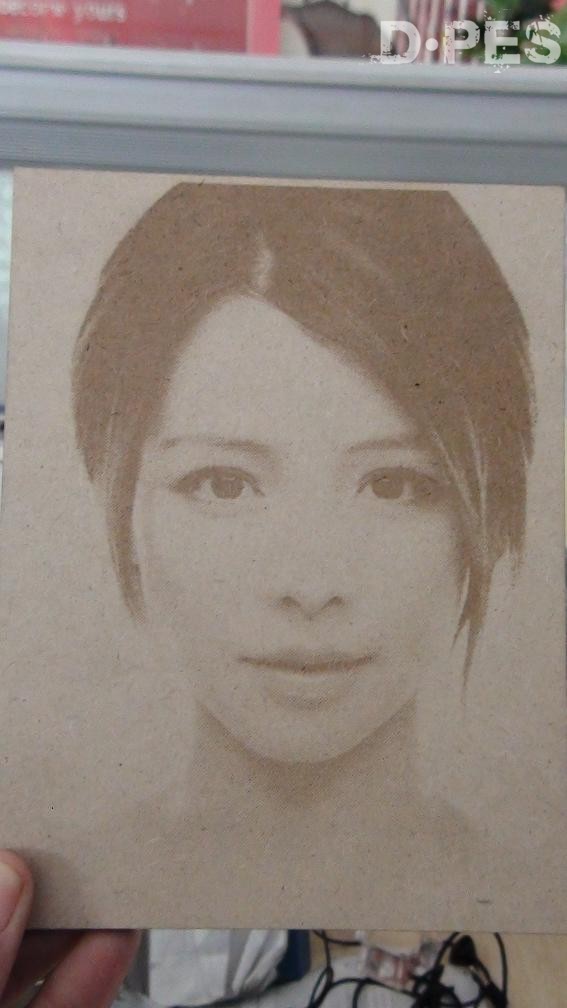

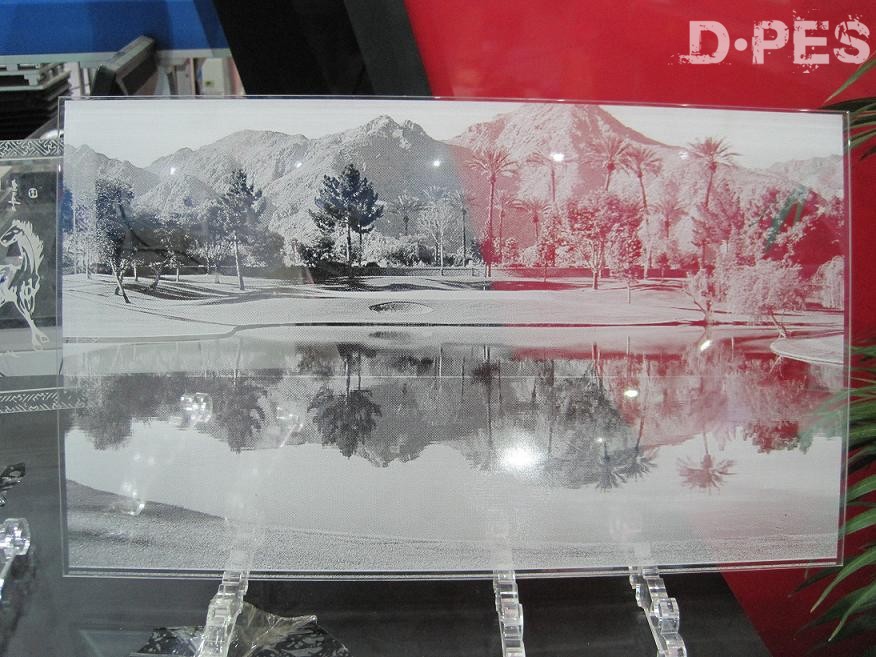

Applicable materials
wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials,etc.
Guarantee and after-sale service
- One year guarantee for whole machine except of laser tube and lens
- 24 hours technical support by e-mail, calling or door-to-door service
- English software, user manual and detailed Videos CD
